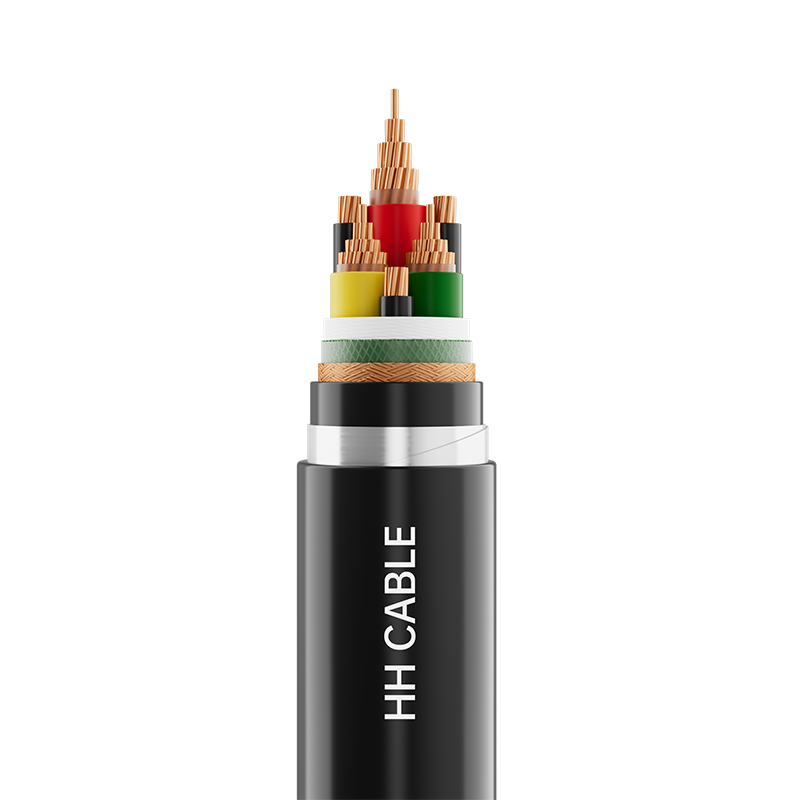

Rated Voltage 1kV Variabilis Frequency Power Cable

Product Name: Rated voltage 1kV variabilis frequency potentia cable

I-executionem signa

Q/30282DJD009-2025

2-Product Model

BPYJVP, BPVVP, BPYJVP2, BPYJVP2-22, BPGGP, BPYJVSP, etc.

3- intentione level

0.6/1kV

IV-Product Specifications

Numerus metretas

Specification

Numerus metretas

Specification

Linea core

Core neutrum

Linea core

Core neutrum

3 3

4 mm 2

1(0.75) mm 2

3 3

70 mm 2

10 mm 2

6 mm 2

1.5(1) mm 2

95 mm 2

16 mm 2

10 mm 2

2.5(1.5) mm 2

120 mm 2

25 mm 2

16 mm 2

4(2.5) mm 2

150 mm 2

35（25）mm 2

25 mm 2

6（4）mm 2

185 mm 2

35 mm 2

35 mm 2

6 mm 2

240 mm 2

50(35) mm 2

50 mm 2

10 mm 2

300 mm 2

50 mm 2

Numerus metretas

Specification

3

1.5 mm 2 -300 mm 2

5. Cable structura descriptio

Cable structure

Material Description

Conductor

Ductores aeris rotundi compacti vel non compacti, conductores aeris - Classis I, Classis II, Classis V;

Repugnans iacuit ignis (si)

Micha tape

Insulation

Nulla polyvinyl chloride, cross-coniunctum polyethylene vel silicone rubber

impletio

Non hygroscopic polypropylene reticulum satiata funem

Cable involuti tape

Non texta vel polypropylene tape

Metallum protegens

Filum aeneum plectens vel laxe vulnus aeneum vel (taenia aenea vel taenia plastica vel taenia plastica) involutio

Interior Vagina (si)

Polypropylene taenia caelata vel (silicone rubber aut polyvinyl chloride aut polyethylene aut halogen libero low-fumi flamma retardant) materia vaginae

Solitudo sleeve (si)

Polyvinyl chloride vel polyethylene vel halogen-liberi low-fumi flammae retardat vaginis materia vel silicone Flexilis

Armatura (si)

Filum chalybeum vel chalybem galvanized tortis galvanized

Exterior vaginae

Polyvinyl chloride vel polyethylene vel halogen-liberi low-fumi flammae retardat vaginis materia vel silicone Flexilis

VI, idem core filum

6,1 Insulation fuco aut color identificatio cohortis;

3-cable: flava, viridis, rubra vel sicut per elit requisita;

3 3 nuclei cable: 3 nuclei principales: flavus, viridis, ruber vel sicut per mos requisita, 3 neutra nuclei: luteo-viridis vel nigri vel ut per mos requisita.

Nota: Nulla insula polyethylene cruce connexa distingui potest nexibus coloratis vel fuco velit.

6.2 Multi-core in velit amet digital identificatio:

3-cable core: 1, 2, 3, vel ut per mos requisita;

3 3 core cable: 3 nuclei principales: 1, 2, 3 vel sicut per mos requisita, 3 neutra nuclei: 0 vel sicut per mos requisita.

7-Vaginis color

Nigrum aut sicut per elit scriptor postulationem

VIII-Special perficientur opus

Flamma retardat gradus A/B/C, ignis obsistens, termite resistens, rodens resistens, UV resistens, oleum resistens, gerunt obsistens, caliditas resistens, etc.

9- cable application notas

9.1 Maximus diuturnus temperatus aestimatus permisit ad funem conductoris in operatione normali;

PVC velit: 70℃; XLPE velit: 90℃; Silicone rubber velit: 180℃.

9.2 Maxima permissa temperatura funeris conductoris in ambitu brevi (duratio 5 secundis non excedens) est: polyvinyl chloridi insulatio: 160°C; cross-conjunction polyethylene insulation: 250°C; silicone rubber velit: 350°C.

Funem temperatus institutionem 9.3 non minus quam 0

9.4 Minimum inflexio radii ad cable institutionem:

9.4.1 Core inermis inermis;

Radius funis minimus inflexus per institutionem: non minus quam XX temporibus exteriorem funem;

Radius funis minimus inflexus post institutionem : non minus quam 15 ter diametri exterioris fune.

9.4.2 Single-coris funem armatum;

Radius funis minimus inflexus per institutionem: non minus quam 15 ter diametri exterioris fune;

Radius funis minimus inflexus post institutionem : non minus quam 12 ter diametri exterioris fune.

9.4.3 Multi-core inermes rudentes;

Radius funis minimus inflexus per institutionem: non minus quam 15 ter diametri exterioris fune;

Radius funis minimus inflexus post institutionem : non minus quam 12 ter diametri exterioris fune.

9.4.4 Multi-core armatae rudentes;

Radius funis minimus inflexus per institutionem: non minus quam 12 times diametri exterioris fune;

Radius funis minimus inflexus post institutionem : non minus quam 10 ter diametri exterioris fune.

9.5 Funis late in systematibus potentiis adaptatis motorum mobilium variabilium 0.6/1kV et infra, efficiens ac stabilis potestatem tradendi et moderandi obtinendi. Praeclara eius protegens, anti-incessiones proprietatum, et aptabilitas ad altas frequentias, tutam ac stabilem operationem motorum variabilium variabilium in ambitibus electromagneticis implicatis..
